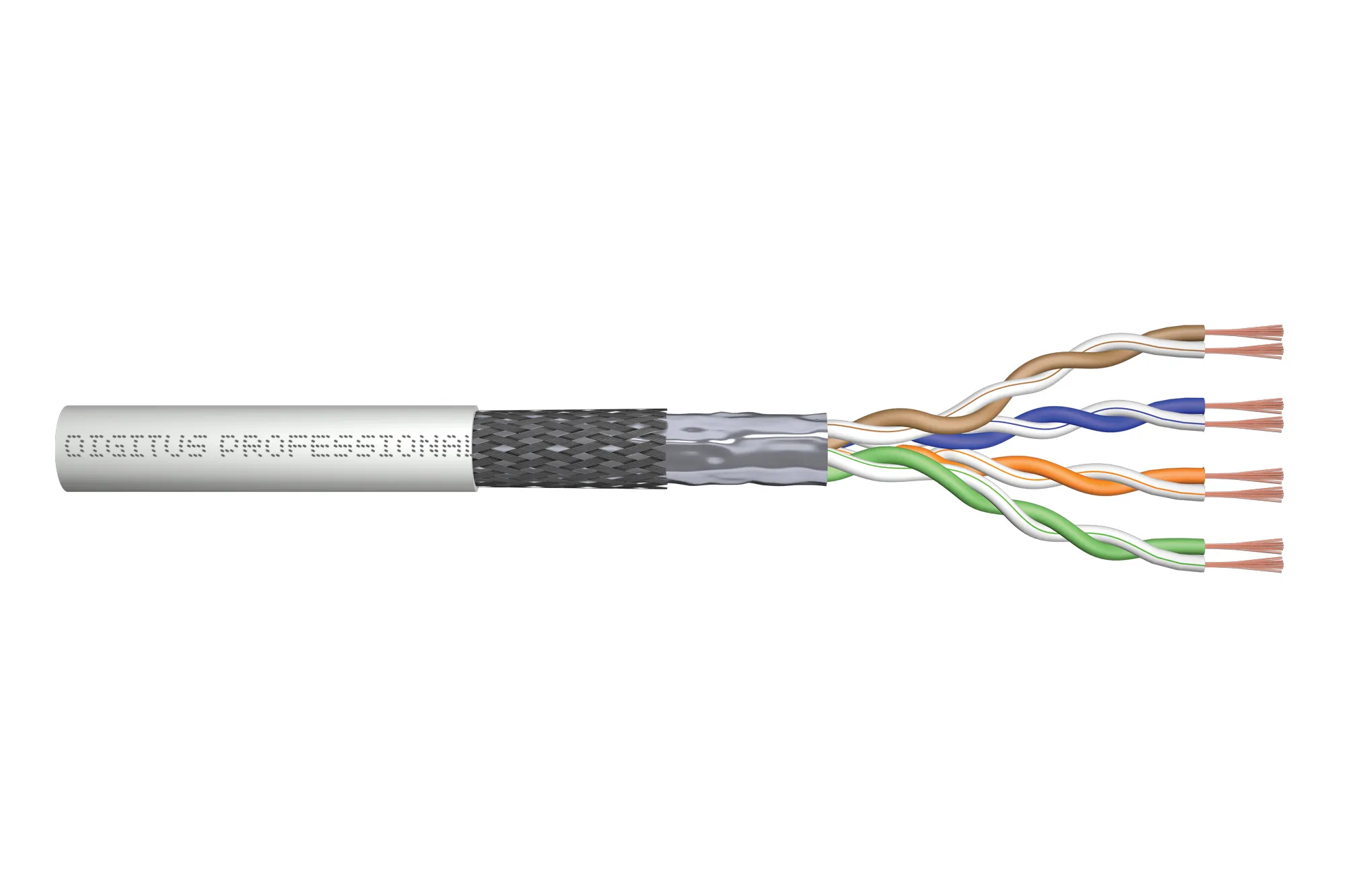

DIGITUS CAT.5e SF/UTP twisted pair raw patch 305m

Insulation: HDPE
Outer sheath thickness: 0.55 mm nominal
Outer diameter: 5.6 mm nominal
Strain relief: 150 N max.
Dynamic bending radius: 8x OD mm min.
Static bending radius: 4x OD mm min.
Transport and storage temperature range: -10 °C to +75 °C
Operating temperature range: -10 °C to +60 °C
Installation temperature range: 0 °C to +50 °C
Loop resistance: ≤ 280 Ω km
Resistance asymmetry: ≤ 2%
Insulation resistance: ≥ 2000MΩ/km @500V
Capacitance: nominal 48 nF/km @ 800 Hz
Capacitance asymmetry (paired Earth): ≤ 1500 nF/km
Impedance: 100 ± 15 ohms @ 10-100 MHz
NVP: 67%
Propagation delay: nominal ≤ 555 ns/100 m
Signal routing difference: nom. ≤ 50ns/100m
Test voltage (DC 1 min) core/core: 1000V
Clutch damping: ≥ 40 dB
Capacitance: 40 pF/m nominal @ 800 Hz
Capacitance imbalance (pair-earth): 1.5 pF/m max. @ 1 kHz
Insulation resistance: 2 GOhm x km min.
Loop resistance: 147 Ohm/Km max. (2% max. resistance unbalance)
Operating voltage: 72 Vdc max.
Insertion loss: 40 dB
Phase delay: 450 ns/100 m max.
Time delay: 20 ns/100 m max.
